bFly

PURE-Absorber


Header PURE Frank Neu flach WEB

PURE - Our novelty

The PURE series for HiFi components and loadspeakers
 As PURE-Tube especially for Tube amplifier

NEW  PURE-small
          designed for small and light components e.g. DAC, Head-Amp, Streamers etc.

With the PURE absorber we have improved our MLA technology (Multi Layer Adjustment) significant.

To increase the broadband absorber effect the PURE implements now a gel pad on the underside.
The duration of the gel pad is adjusted to the other absorber layers and complements the layer model of the MASTER serie.
Furthermore the PURE has an additional air cell between the two aluminium layers and parallel to the Sorbothane.

So we provide our MLA Technologie additionally on a pneumatic way. The sonic result of the PURE is more details and plasticity with usual natural sound.



PURE Gruppe 3 fmh u mirror WEB



Possible applications:

  • With the cork side under the feet of the device

  • directly under the base plate; for this usage we offer some variants in higher design

  • furthermore as screwable version available
    M4, M5, M6 or M8.
  • Available in aluminium polished and black



     PURE Gruppe 4 b ou mirror WEB

Our new PURE absorber has a very narrow encapsulation of the single absorber layers.

The physical effect is a improved horizontal stabilisation in case of ambience.

Lateral vibrations, mostly caused from the loadspeakers, will be elimiated better. Precisely in the case of turntables and CD players, with mechanical parts, we obtain more quite and stabil sound image.

For optimum adjustment to the weight of the device we offer different variants  in 3 different height. The height has no effect to the sound improvement.



PURE 2 hoch liegend mirror WEB

PURE bottom side

The complex structure of the PURE with 6 different materials are according our MLA Technology arranged on 7 layers.

So we achieve as much as possible broadband filtering of vibrations.

Very important for this result is the material Sorbothane with the attributes of liquid.

Read more about our favored absorber material Sorbothane
and our MLA Technology


PURE oben hoch shadow WEBPURE upper side

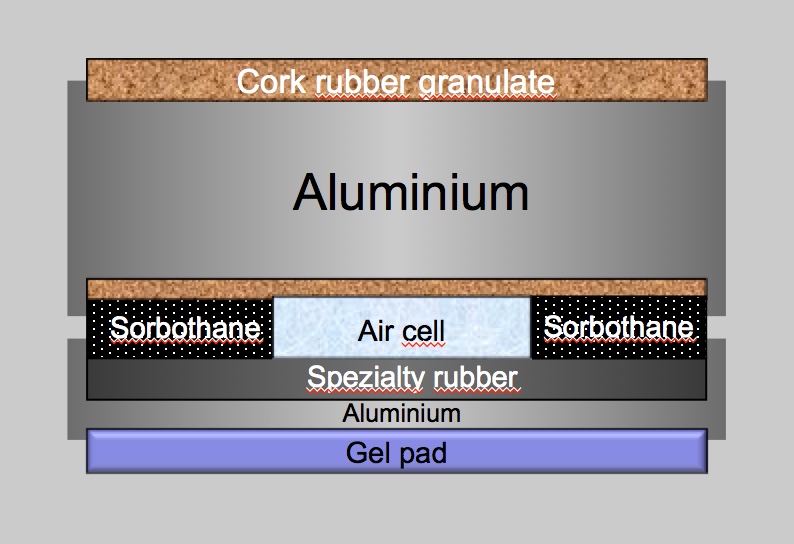

The complex structure od the PURE series

from top to down
- granulate of cork with natural rubber
- corpus of aluminium as delimiter
- granulate of cork with natural rubber (thin)
- Sorbothane with parallel air cell
- speciality rubber
- cap of aluminium as delimiter
- special gel pad



PURE Skizze en

PURE-Tube for tube amplifier

Our PURE-Tube absorber are designed for the construction related one-sided distribution of the weight.

The transformers of Tube Amplifiers produce by nature mechanical vibrations and so disturb the flow of signals
within the internal boards, cables, electronic components and especially the sensitive tubes.
 These parts are major on the easier side of the amplifier.
 So the PURE-Tube absorbers consists of 2 different types.


- 2 absorber with more soft damping for the light side of the device results in an much better damping factor in this critical area.

- 2 absorber with more hard damping placed on the heavy side.



PURE Absorber

MASTER-1.5 Absorber

PURE  für Geräte und Kompaktlautsprecher

Absorber 4er Set

  • Durchmesser 44 mm
  • Höhe: wahlweise  17, 24 oder 31 mm

  • PURE-small Durchmesser 30 mm, Höhe 19 mm (siehe unten)

  • Lieferumfang: 4 Absorber im Koffer

    PURE-small bis   5 kg   199,00 €  (siehe unten)

    PURE-0

    bis   5 kg   229,00 €
    PURE-1
          bis 25 kg   249,00 €
    PURE-2        bis 45 kg   299,00
    PURE-3        bis 70 kg   359,00 €

Set ab 229,00 €
Preis inkl. MwSt., zzgl. Versand

Schraubbar Set ab 249,00 €
Preis inkl. MwSt., zzgl. Versand

zum Online-Shop  zum Online-Shop

PURE-Tube für Röhrenverstärker

MASTER-1.5 Absorber

Die PURE-Tube speziell für Röhrenverstärker.

Absorber 4er Set

  • Durchmesser 44 mm
  • Höhe wahlweise  17, 24 oder 31 mm
  • Lieferumfang: 4 Absorber im Koffer

    PURE-Tube-0   bis 12 kg   239,00 €
    PURE-Tube-1
    bis 35 kg   279,00 €
    PURE-Tube-2   bis 55 kg   339,00

Set ab 239,00 €
Preis inkl. MwSt., zzgl. Versand

Schraubbar Set ab 259,00 €
Preis inkl. MwSt., zzgl. Versand

zum Online-Shop zum Online-Shop

PURE-small Absorber

PURE-small Absorber

PURE-small  für Geräte

Absorber 4er Set

  • Durchmesser 30 mm
  • Höhe:  19 mm
  • Lieferumfang: 4 Absorber im Koffer

    PURE-small bis   5 kg   199,00 €

Set      199,00 €
Preis inkl. MwSt., zzgl. Versand

zum Online-Shop
