Octopus

OCTOPUS New Concept for calming LP

Our Octopus is a completely new developed modular concept.
The customer could select the function, clamp or weight, the form of the knob, the color and the weight class too.

By changing the arbor hole the Octopus changes to a clamp or to a weight.
This exchange is later possible too, by order the according arbor hole.

The usage of a clamp is reasonable in case of relatively waved LP.
By turning the knob, the LP will be fixed very strong to the arbor of your turntable. Waved LP will be straightened by the pressure and LP with low weight will be more effective calmed.

- Important: Do not use the clamp function while rotating the turntable.

Absorber concept

The integrated absorber concept of the Octopus was developed completely new bases on the existing experiences. It was considered the vibration of the LP and also the vibrations caused by the motor or the belt of the turntable.

On the bottom side of the Octopus 8 two-layered absorber elements care for a immobilization of the LP. Hemispheres of birch wood take the vibration of the LP and transport them to overlying gel pads, which destroy the energy of the disturbing vibrations (see picture to the right)

Decoupling of the turntable

The vibrations, coming from the arbor of the turntable, will be reduced by a special plastic of the arbor hole, in combination with a copper modul, which is inserted as plugin into the knob.

In case of the function "clamp" the 8 arborber has a special role. With the pressure remaining unevenesses of the LP will be balanced to a certain degree. WIthout absorber other clamp will have remaining "flutter".

Complex structure

The Octopus consists of 20 elements. The two-layered absorber elements will be exactly three-dimensionally measured and matched.

The knop of copper and the chassis of copper will be coated with a special lacquer for prevention of oxidation. The logo is a patinized coinage. You could select a silver or a copper coin.

The Octopus as clamp is y very reasonable supplement to our weight for turntable PG1 or PG0

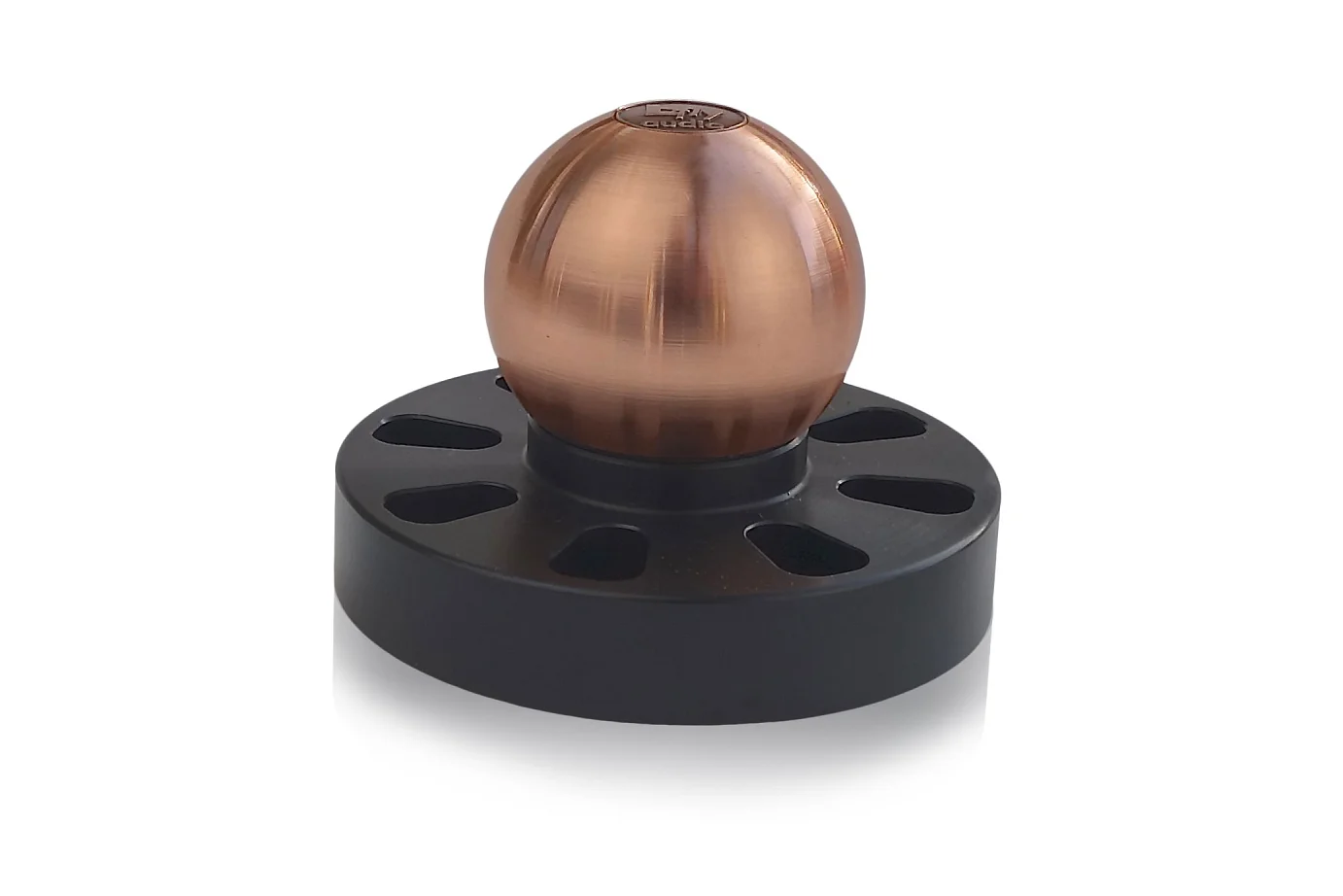

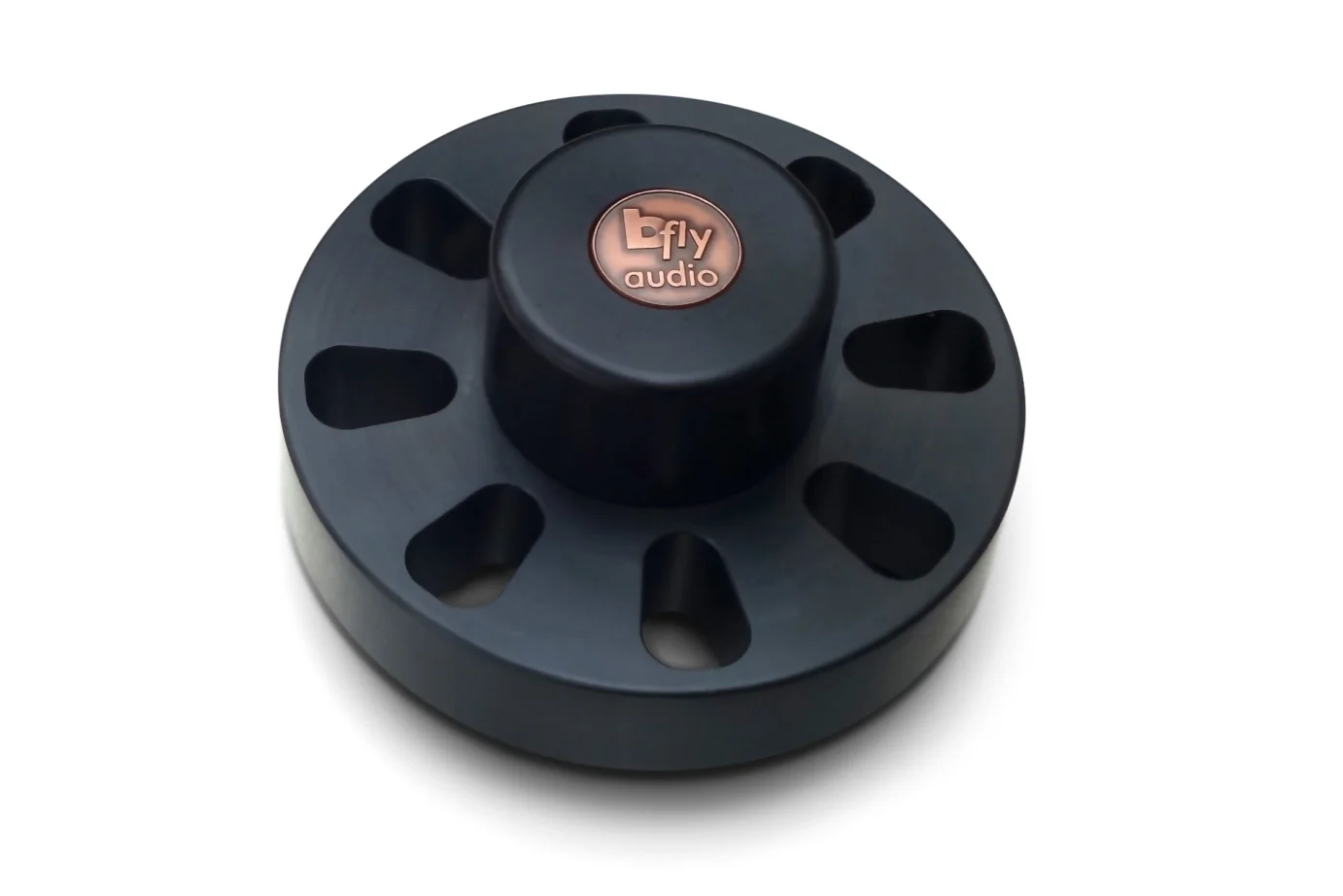

Weight	with cylindric knob	230g
	with spherical knob	300g
Diameter		78mm
Height	with cylindric knob	37mm
	mit with spherical knob	58mm

Price: from 449,00 €

Light	clamp or weight	449 €
Light Vario	variable: clamp and weight (*)	489 €

Heavy	clamp or weight	599 €
Heavy Vario	variable: clamp and weight (*)	639 €

DUET Light	Light clamp and Light Weight	799 € instead of 898 €
DUET Heavy	Light clamp and Heavy Weight	949 € instead of 1048 €

Late purchase	Arbor hole: clamp or weight	50 €
