4TUBE for Tube Amplifier
The 4TUBE absorbers are specifically designed for Tube Amplifiers.
The 2. Generation now available with screws.
| The effectiveness of the 4TUBE Series The transformers of Tube Amplifiers produce by nature mechanical vibrations and so disturb the flow of signals within the internal boards, cables, electronic components and especially the sensitive tubes. Our 4TUBE absorbers are designed for this weak points of tube amplifiers The result: |
|
Our alternative for solid state amps and loadspeakers
Serie MASTER: for solid state amps and loadspeakers; The construction analogous to the 4TUBE
Serie LINE: Less effectiveness in comparison with 4TUBE und MASTER, because of absorber construction without cork-rubber
Serie b.DISC: Suitable for hifi components and loadspeakers with spikes
Screwable version: with screws M4/M6/M8 or inner thread M4/M6
For optimum adjustment to the weight of the device we offer two variants: 4TUBE-1 up to 22 kg; 4TUBE-2 up to 50 kg
 |
 |
|
| 4TUBE-1 up to 22 kg | 4TUBE-2 up to 50 kg |
The effectiveness of the 4TUBE variant:
The transformers of Tube Amplifiers produce by nature mechanical vibrations and so disturb the flow of signals
within the internal boards, cables, electronic components and especially the sensitive tubes.
These parts are major on the easier side of the amplifier.
So the 4TUBE absorbers consists of 2 different types.
- 2 absorber with more soft damping for the light side of the device results in an much better damping factor in this critical area.
- 2 absorber with more hard damping placed on the heavy side.
|
Possible applications:
|
4TUBE Buttom side |
| The complex layer model from top to - down • Cork Rubber mixture • Massive Aluminium as separator • Cork Rubber mixture • Sorbothane • Natural rubber |
|
Hugh B. from Paris writes:
... So given the price, the results I obtained, I d say it s not only worth every single cent but also efficient! A true affordable audiophile accesory with excellent results in terms of vibrations damping. What I also like is the "no voodoo" aspect of the product:
See also Customer reports

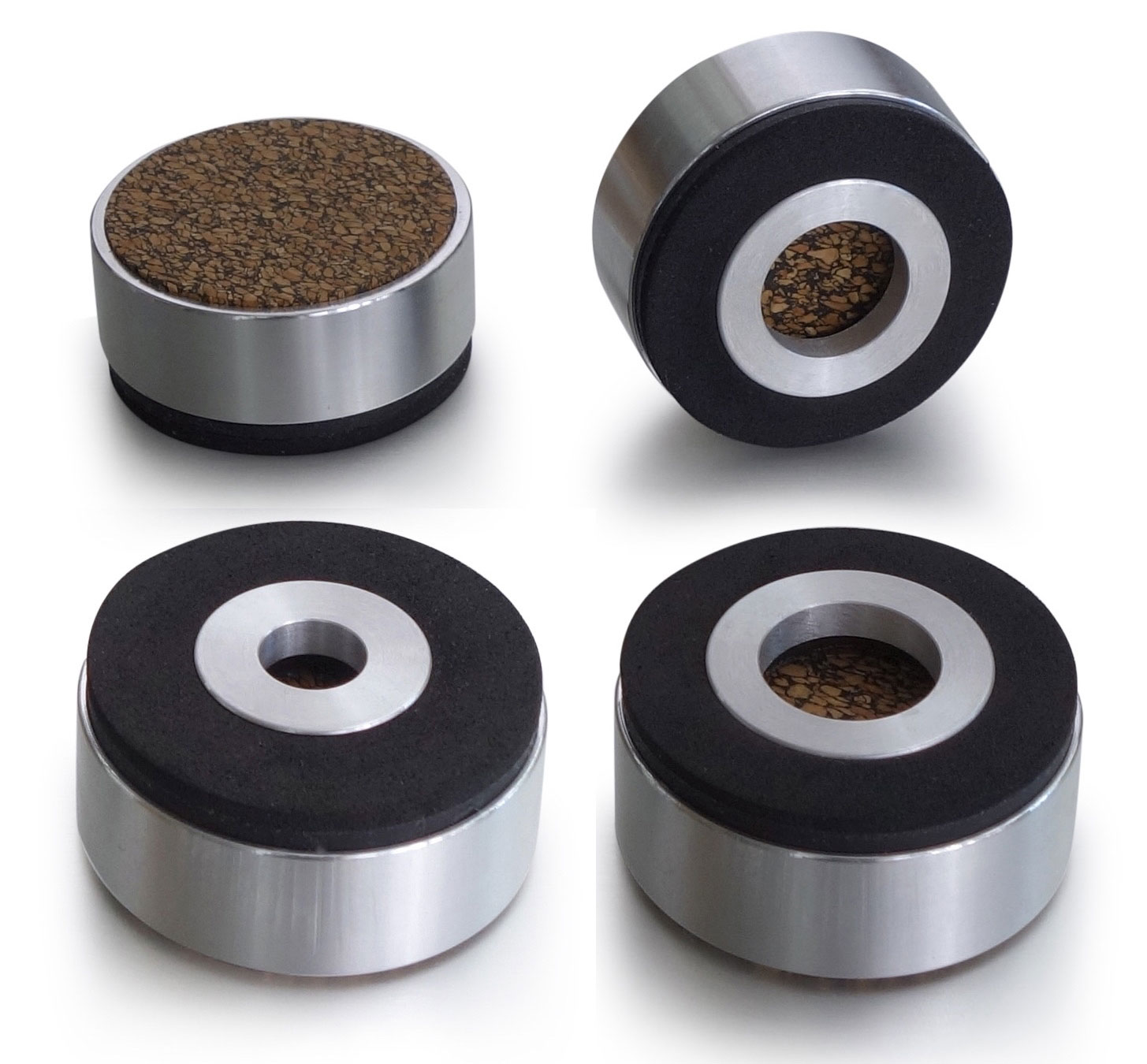

4TUBE-1 - up to 22 kg
Absorber set with 4 pieces
Loadable: up to 22 kg per set
Diameter: 44 mm
Height: optional 14 mm, 21 mm or 28 mm
The height has no effect to the sound improvement.
Optional screwable only for height 21 mm
The 2 types of absorber
- 2 pieces with wide sector of a circle
under the light side of the unit
- 2 pieces with small sector of a circle
under the heavy side of the unit
Montage: Simply place the absorbers with cork side
under the feet of your unit or directly under
the base plate.
|
Set 179,00 € per set |
Screwable Set 199,00 € Price incl. VAT, plus shipping costs |
| Online shop | Online shop |

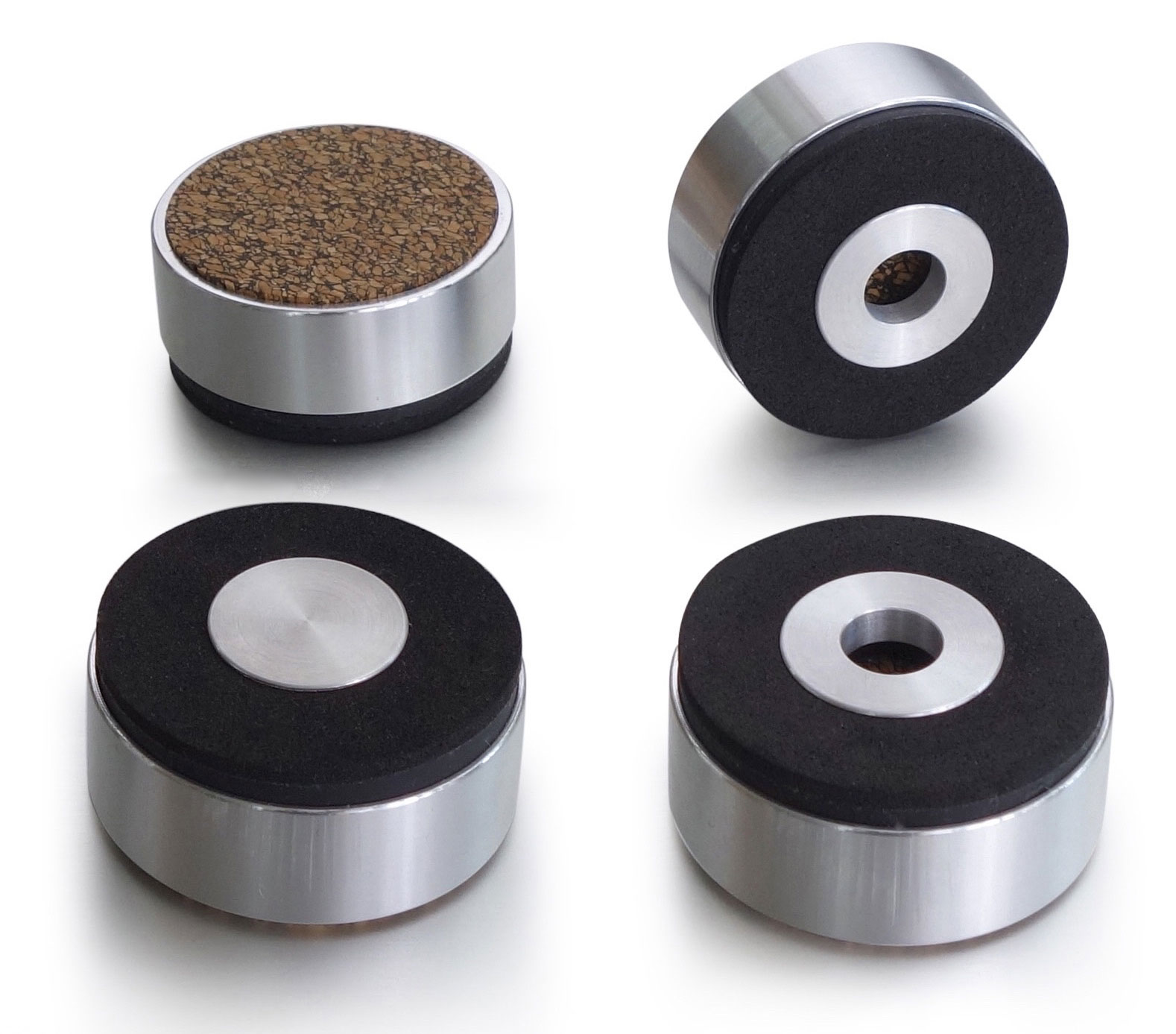

4TUBE-2 - up tp 50 kg
Absorber set with 4 pieces
Loadable: up to 50 kg per set
Diameter: 44 mm
Height: optional 14 mm, 21 mm or 28 mm
The height has no effect to the sound improvement.
Optional screwable only for height 21 mm
The 2 types of absorber
- 2 pieces with the circular absorber
under the light side of the device
- 2 pieces with discuit absorber
under the heavy side of the device
Montage: Simply place the absorbers with cork side
under the feet of your unit or directly under
the base plate.
| Set 199,00 € per set Price incl. VAT, plus shipping costs |
Screwable Set 219,00 € Price incl. VAT, plus shipping costs |
| Online shop | Online shop |
